Description | Recessed LED Line luminaire with finishing ring. Available in different finishes Opal or micro prismatic diffuser (optional) Possibility of integrating different extra accessories (optional) |
Finishes | White Satin Grey Grey - RAL 9006 Brushed Graphite - RAL 7016 Black - RAL 9005 Gold - on request Corten (oxidized brown) - on request Dark bronze - on request Other RAL - on request |
Materials | Extruded aluminium and opal diffuser (micro prismatic or black - optional) |

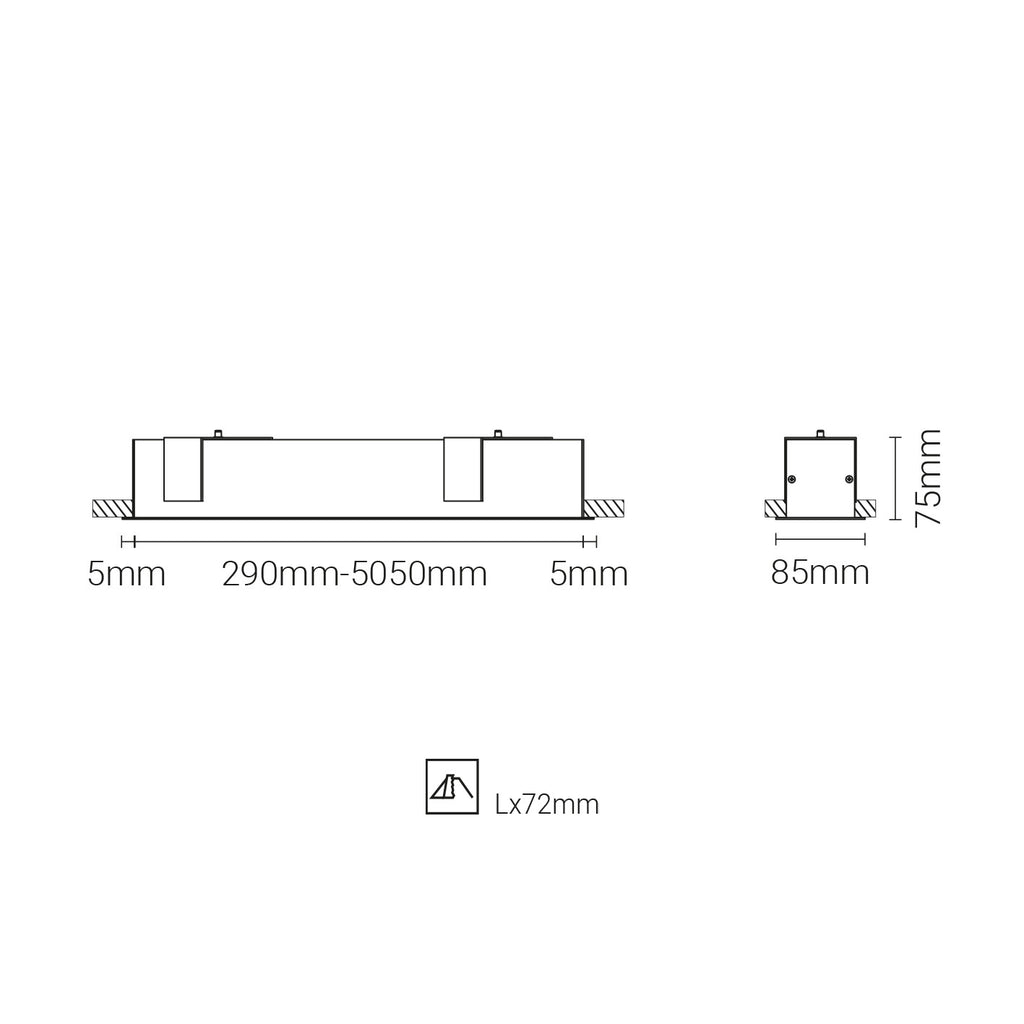

Height (cm) | 7.5 (built-in) |
Width (cm) | 8.5 (incl. 10mm brim each side) |
Length (cm) | 29 - 505 |
Mounting opening (cm) | 5 x L (length) |
IP/IK protection | IP40 / IK05 |
Voltage | 230V |
Light Source | LED 24V - includes internal ON/OFF IP20 driver (optional dimmable version) |
Colour temperature (K) | 2700K / 3000K / 4000K / 5000K / 6500K |
CRI | 80 |
References | T403211029 / 29cm / LED 7W 1100lm T403211057 / 57cm / LED 14W 2200lm T403211099 / 99cm / LED 24W 3850lm T403211113 / 113cm / LED 28W 4400lm T403211155 / 155cm / LED 38W 6050lm T403211197 / 197cm / LED 49W 7700lm T403211211 / 211cm / LED 56W 8250lm T403211239 / 239cm / LED 60W 9350lm T403211295 / 295cm / LED 74W 11550lm T403211505 / 505cm / LED 126W 19800lm |
Other dimensions: T403211xxx - on request Trimless version (without rim): T402711xxx - on request |
customizable made-to-order item |
